UNF & UNC Studs

Double End Stud
End 1: 1/4 UNC 20tpi
End 2: 1/4 UNF 28tpi
Overall Length: 1&1/32 inch
Finish: Plated
Fits: Rocker Box

Double End Stud
End 1: 5/16 UNC 18tpi
End 2: 5/16 UNF 24tpi
Overall Length: 3&1/32 inch
Finish: Plated
Fits: Gearbox

Double End Stud
End 1: 5/16 UNC 18tpi
End 2: 5/16 UNF 24tpi
Overall Length: 3&1/32 inch
Finish: Plated
Fits: GEARBOX COVER,TRIPLE

Double End Stud
End 1: 3/8 UNC 16tpi
End 2: 3/8 UNF 24tpi
Overall Length: 1&9/16 inch
Finish: Plated
Fits: Rocker Box

Double End Stud
End 1: 3/8 UNC 16tpi
End 2: 3/8 UNF 24tpi
Overall Length: 4&1/2 inch
Finish: Plated
Fits: Crankcase

Double End Stud
End 1: 5/16 UNC 18tpi
End 2: 5/16 UNF 24tpi
Overall Length: 1&1/4 inch
Finish: Plated

Double End Stud
End 1: 5/16 UNC 18tpi
End 2: 5/16 UNF 24tpi
Overall Length: 1&3/8 inch
Finish: Plated

Double End Stud
End 1: 5/16 UNC 18tpi
End 2: 5/16 UNF 24tpi
Overall Length: 1&1/2 inch
Finish: Plated

Double End Stud
End 1: 5/16 UNC 18tpi
End 2: 5/16 UNF 24tpi
Overall Length: 3&1/4 inch
Finish: Plated

Double End Stud
End 1: 5/16 UNC 18tpi
End 2: 5/16 UNF 24tpi
Overall Length: 3&1/2 inch
Finish: Plated

Double End Stud
End 1: 3/8 UNC 16tpi
End 2: 3/8 UNF 24tpi
Overall Length: 1&3/4 inch
Finish: Plated
Fits: Brake Plate

STUD,PLUNGER PLATE,TRI 650/750

STUD,PIVOT LUG,T150

STUD,INLET MANIFOLD TRIPLES

STUD,7/16X20X4

STUD,7/16X20X10.5 T150 ENG MT

STUD,5/16X1 3/8,UNC,UNF

Crankcase Stud
Triumph

Barrel to Head Stud
Triumph BSA Triple

Double End Stud
End 1: 3/8 UNC 16tpi
End 2: 3/8 UNF 24tpi
Overall Length: 1&3/4 inch
Finish: Plated

STUD,3/8X1&5/8,BSF/UNF

STUD,3/8X1&11/16,BSF/UNF

STUD,FOOTREST,TRI T120

STUD,SUBFRAME,TRI T120/150

Cylinder Barrel Stud BSA
End 1: 5/16 UNC 18tpi
End 2: 5/16 UNF 24tpi
Overall Length: 1&1/2 inch
Finish: Plated

Locating Stud
Cylinder Barrel
A65 TO'69

Oil Pump Stud A65
Double End Stud
End 1: 1/4 UNC 20tpi
End 2: 1/4 UNF 28tpi
Overall Length: 2&1/2 inch
Finish: Plated

Oil Feed Pipe Stud
Triumph Twins 1969 on

Oil Pump Stud
End 1: 1/4 UNC 20tpi
End 2: 1/4 UNF 28tpi
Overall Length: 1&1/2 inch
Finish: Unplated

Cylinder Base Stud
End 1: 3/8 UNC 16tpi
End 2: 3/8 UNF 24tpi
Overall Length: 1&3/4 inch
Finish: Plated

Alternator Stud Long
Triumph 650 1969-72
End 1: 5/16 UNC 18tpi
End 2: 5/16 UNF 24tpi
Overall Length: 4&3/8 inch

Alternator Stud Short
Triumph 650 1969-72
End 1: 5/16 UNC 18tpi
End 2: 5/16 UNF 24tpi
Overall Length: 3&5/16 inch

Inlet Manifold Stud
Double End Stud
End 1: 1/4 UNC 20tpi
End 2: 1/4 UNF 28tpi
Overall Length: 2 inch
Finish: Plated

Petrol Tank Stud

Crankcase Stud
Unit Construction
Triumph BSA Singles
End 1: 5/16 UNC 18tpi
End 2: 5/16 UNF 24tpi
Overall Length: 2&7/8 inch
Finish: Plated

Oil Feed Stud
Unit Construction
Triumph BSA Singles
End 1: 5/16 UNC 18tpi
End 2: 5/16 UNF 24tpi
Overall Length: 1&7/8 inch
Finish: Plated

Oil Pump Stud
Unit Construction
Triumph BSA Singles
End 1: 1/4 UNC 20tpi
End 2: 1/4 UNF 28tpi
Overall Length: 2&1/8 inch
Finish: Plated

Alternator Stud
BSA B50 Rear

Alternator Stud
BSA B50 Front

Alternator Stud
BSA B50 Bottom

STUD,CYL/BASE,STEPPED,TRIPLE

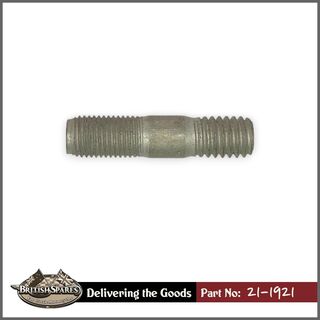

Cylinder Base Stud
End 1: 3/8 UNC 16tpi
End 2: 3/8 UNF 24tpi
Overall Length: 1&1/2 inch
Finish: Plated
Fits: Triumph 500
aka: S1921

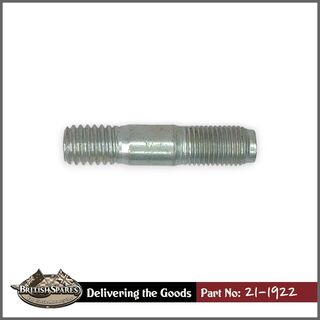

Cylinder Base Stud
End 1: 3/8 UNC 16tpi
End 2: 3/8 UNF 24tpi
Overall Length: 1&11/16 inch
Finish: Plated
Fits: Triumph 500
aka: S1922

Crankcase Stud
End 1: 5/16 UNC 18tpi
End 2: 5/16 UNF 24tpi
Overall Length: 3&3/4 inch
Finish: Plated
Fits: Triumph 500
aka: S1925

Gearbox Stud
End 1: 5/16 UNC 18tpi
End 2: 5/16 UNF 24tpi
Overall Length: 3&1/8 inch
Finish: Plated

Gearbox Stud
End 1: 1/4 UNC 20tpi
End 2: 1/4 UNF 28tpi
Overall Length: 1&1/4 inch
Fits: Triumph 500
aka: S1928

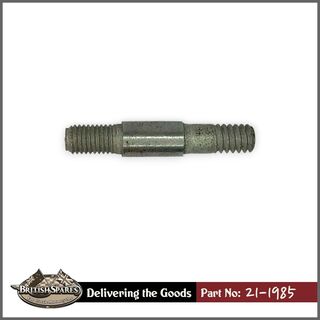

Stepped Stud
End 1: 1/4 UNC 20tpi
End 2: 1/4 UNF 28tpi
Overall Length: 1&5/8 inch
Finish: Plated
aka: S1985

Shouldered Stud
Inlet Manifold to Carb
Triumph Twins

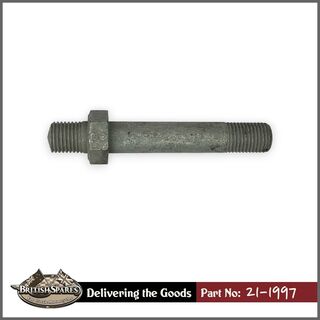

Top Shock Stud
End 1: 3/8 UNF 24tpi
End 2: 3/8 UNF 24tpi
Fits: Left Side Top
1971 on TR6C
aka: S1997
